Trailer Wiring Diagram: 4-Pin, 7-Pin, and More

A trailer wiring diagram is most useful before you cut, splice, or order a replacement connector. It gives you a function map for the connection between the tow vehicle and trailer, but it is not a substitute for checking the plug that is actually in front of you. A basic utility trailer may only need four lighting circuits. A trailer with electric brakes, a breakaway battery, or reverse lights can need a more capable connection.

Start by identifying what the trailer needs to do. Then match the connector, test the vehicle-side socket, and trace only the circuit that is not working. That sequence helps you avoid a common mistake: replacing a trailer-side part when the missing signal is actually at the tow vehicle, or assuming a plug adapter creates a circuit that has never been wired.

Start with the trailer functions you need

The simplest way to choose a trailer connection is to list the functions the trailer uses. Running lights, left turn and brake, right turn and brake, and ground are the basic needs for many small trailers. Electric brakes, a charge line, reverse lights, and auxiliary equipment require additional circuits and a setup that supports them from the tow vehicle to the trailer.

Look at the existing trailer plug, the vehicle socket, the trailer lighting, and any brake or battery equipment before buying anything. The trailer wiring collection includes connectors and adapters for several common configurations, but the right choice starts with the current connection and the functions your trailer actually uses.

A connector style tells you what it may be able to carry. It does not prove every terminal is connected, powered, or working. A five, six, or seven-way plug can have unused positions. A four-way plug can be correct for a lighting-only trailer. Confirm the function at the terminal with the vehicle documentation, connector markings, and a tester instead of relying on wire color alone.

Four-pin trailer wiring diagram: the basic light circuits

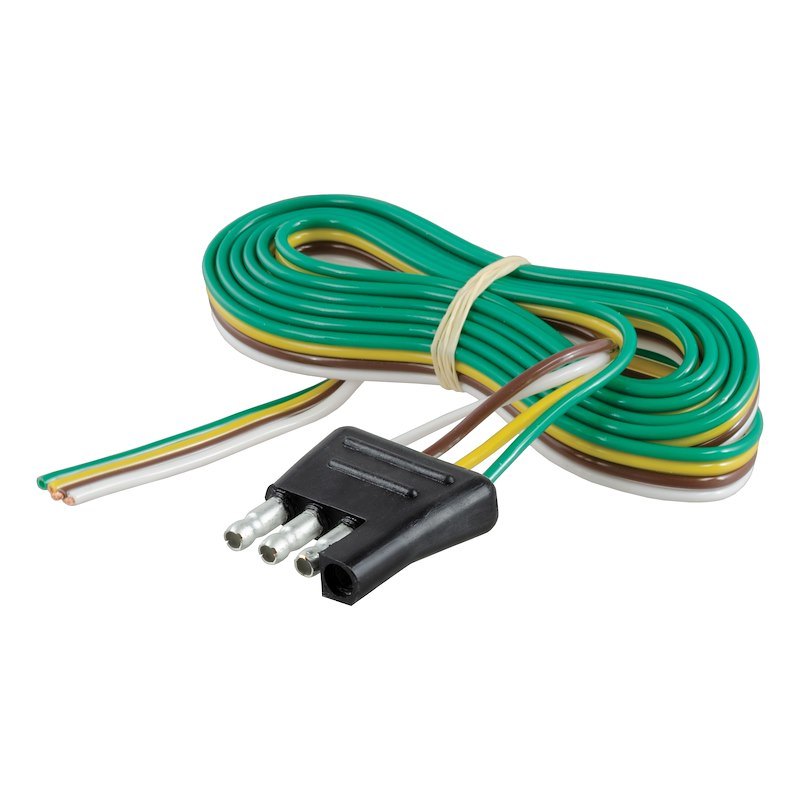

A four-way flat connector is common on utility trailers, small cargo trailers, and other trailers that need lighting but do not use a separate electric-brake circuit. The usual four circuits are ground, running lights, left turn and brake, and right turn and brake. The left and right signal circuits also brighten the matching brake lights on a typical combined-light system.

Four-way wiring is a good fit when those are the only trailer functions required. It does not carry a dedicated electric-brake output, reverse-light circuit, or auxiliary 12-volt feed. If the trailer needs those functions, step up to the connector and complete wiring system that supports them. For the full four-way color and troubleshooting process, use Northline's 4-pin trailer wiring diagram guide.

Seven-pin trailer wiring diagram: more circuits in one plug

A seven-way RV blade connection is common on trailers with electric brakes and other equipment beyond basic lighting. In addition to ground, running lights, and left and right turn-and-brake signals, a typical seven-way setup can carry an electric-brake output, auxiliary 12-volt power, and reverse or auxiliary power. The exact terminal assignment can vary by connector and trailer setup, so verify the plug marking and test every function before making a repair.

The blue brake circuit is not a lighting wire. It needs a compatible brake controller, correct vehicle wiring, a working trailer brake system, and a proper setup procedure. Auxiliary power is also not a promise that a trailer battery is charging correctly. Treat each circuit as its own job and test it accordingly. Northline's seven-pin wiring guide explains the common functions in more detail.

Match the vehicle socket and trailer plug before ordering

Start by looking at both sides of the hitch connection. The tow vehicle normally has a socket, while the trailer normally has a plug on a cable leading into its harness. A replacement part must match the side you are replacing as well as the connector style and cable length. A trailer-side plug is not interchangeable with a vehicle-side socket just because the face looks similar.

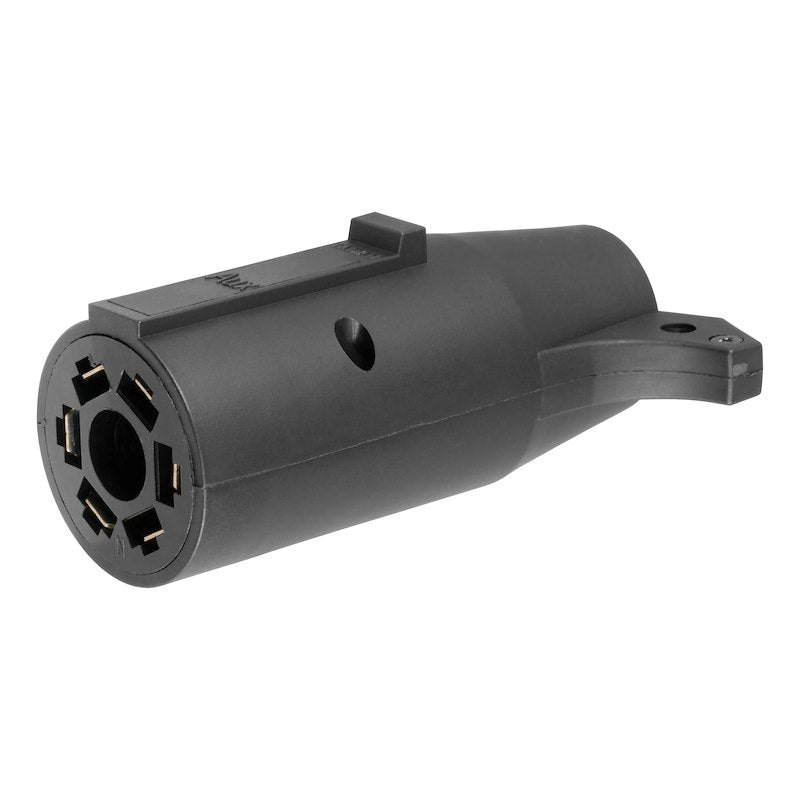

When the vehicle and trailer use different connector shapes, an adapter can be useful. For example, a four-way and seven-way adapter can provide compatible connection points for a four-way trailer and a seven-way vehicle socket. It does not add a brake controller, a charge line, or a missing wire run to the trailer. Those systems still need to be installed and tested as a whole.

Do not select a connector only by the number of pins. Check whether the plug has a tight fit, whether the trailer cable reaches the vehicle without pulling tight or dragging, and whether the connector is designed for the functions you need. A good connection should have enough slack for turns, support the cable near the tongue, and stay clear of sharp edges and moving parts.

Test the vehicle socket before working on the trailer

Unplug the trailer before testing. Turn on one vehicle function at a time and use a circuit tester or multimeter at the vehicle socket. Check running lights, left turn, right turn, and brake lights first. Use the hazard lights to help test turn signals when working alone, and use a helper for brake-light testing when possible.

If the expected signal is missing at the vehicle socket, the trailer cannot correct it. Check the vehicle owner's manual for trailer-light fuses, inspect the socket for corrosion or pushed-back terminals, and make sure the vehicle harness is secure. A damaged vehicle socket, loose terminal, or blown fuse can look exactly like a trailer wiring problem from behind the trailer.

Once the vehicle socket passes, connect the trailer and test at the trailer plug or the first accessible point behind it. This comparison tells you whether the problem is crossing the hitch connection or lies farther back in the trailer harness. Test the connector function, not only the wire color. Common color conventions are useful, but the CURT trailer-wiring reference also stresses matching the connection to the trailer and vehicle setup.

Give the ground wire a real inspection

Every trailer lighting circuit needs a dependable ground path. On many trailers, the white ground wire attaches to the frame near the tongue. The terminal should be tight against clean bare metal, not paint, rust, grease, or a loose fastener. A ground that looks connected can still fail when vibration, road spray, or corrosion gets between the terminal and the frame.

A weak ground can cause dim lights, a whole side of lights to fail, or one lamp to glow when another function is on. Those symptoms are often mistaken for a bad light or crossed wires. Clean the contact surface, secure the hardware, and inspect the ground path near a single misbehaving light if the main tongue ground checks out.

Do not replace multiple lamps before confirming the ground. The trailer wiring troubleshooting guide walks through that diagnosis from the tow vehicle to the rear light, one circuit at a time.

Trace only the circuit that failed

Once power leaves the vehicle socket and crosses the plug, follow only the circuit that does not work. Check the tongue where the cable flexes, frame crossmembers, axle area, rear light brackets, and spots where a clip is missing or the harness can rub. Look for cracked insulation, loose crimp connections, corroded splices, or wire hanging low enough to catch debris.

1. Nothing works: Check the vehicle socket, plug, main ground, and main harness feed.
2. One light function is out: Test that circuit at the vehicle socket, trailer plug, nearest splice, and lamp input in order.
3. Only one side is out: Inspect the matching left or right signal circuit, lamp connection, wire run, and ground point on that side.
4. Lights flicker over bumps: Look for a loose connector, weak ground, unsupported harness, corroded splice, or rubbed-through wire.
5. A fuse keeps blowing: Stop replacing fuses and find the damaged wire or component creating the short.

Test before you replace. If power reaches the lamp on the correct function and the ground is solid, the lamp or lamp-side connection is the stronger suspect. If power stops before the lamp, move backward to the nearest splice or connector until you locate the break.

Repair the failed connection, then protect the harness

A cracked plug housing, green corrosion on a terminal, loose strain relief, or intermittent hitch connection usually points to a connector repair. A light with power and a good ground may need the correct replacement lamp or pigtail. A damaged wire run may need a protected repair or a new harness section rather than another temporary splice.

Use weather-protected connections, support the harness at regular intervals, and keep wires clear of sharp metal, exhaust heat, suspension movement, and the road. A three-wire plug-in pigtail can be the right solution when the failure is isolated at a compatible stop, tail, and turn lamp. It will not solve a missing signal farther forward in the harness, so test first.

After a repair, test running lights, both turn signals, brake lights, hazards, side markers, and any other equipped function. The federal standard for lamps and associated equipment is detailed because trailer requirements vary by size and configuration. For equipment requirements that apply to a specific trailer, review the manufacturer guidance and Federal Motor Vehicle Safety Standard No. 108.

Get the right wiring parts without guessing

Northline Trailer Group can help you narrow down a connector, adapter, pigtail, or lighting part when you bring the details from the trailer in front of you. A photo of the vehicle socket and trailer plug, the wire colors at the repair, the trailer's brake equipment, and the failed function are far more useful than choosing a part by appearance alone.

Browse the trailer wiring collection, see the trailer light kit options, or contact Northline for help confirming the next step. A dependable repair starts with the right connector and a tested circuit, then ends with a complete light check before the trailer goes back on the road.
