Trailer Light Kits: LED Options for Your Trailer

Find the lighting parts that match your trailer, whether you are replacing a damaged taillight or updating the rear lighting as one complete job. Northline carries LED kit, lamp, and connection options for compatible trailers.

Shop Trailer Lights ›Call Northline ›

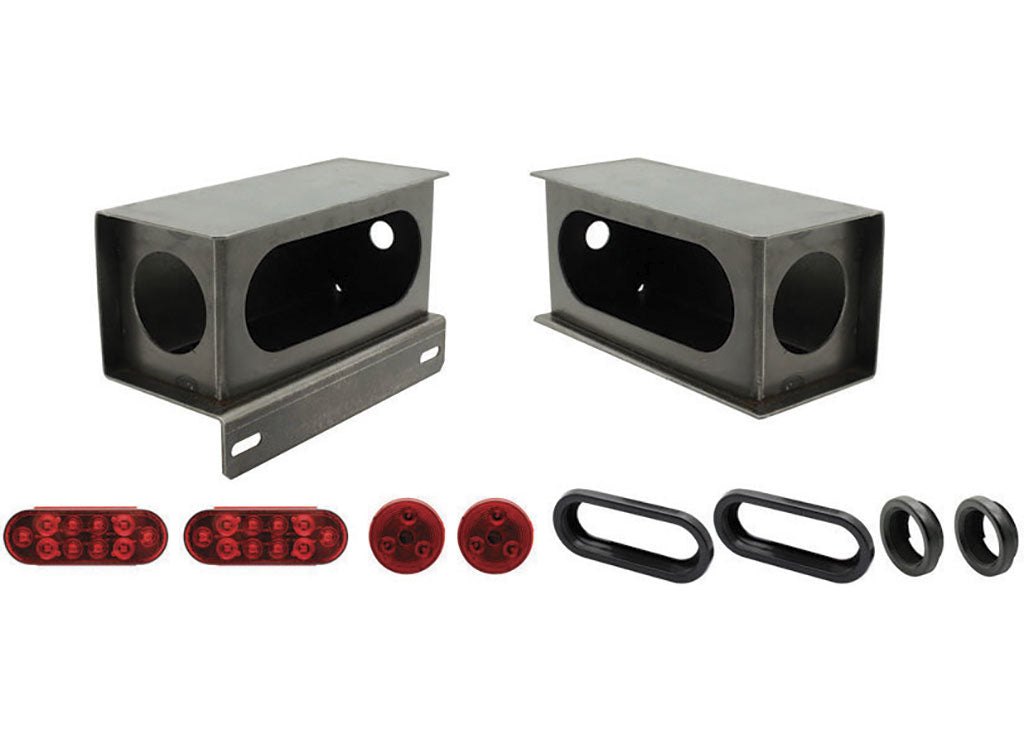

LED weld-on trailer light kit with license plate bracket

Start with what failed

Replace the light, or rebuild the whole rear setup.

Trailer lights have to work together. A running light, brake light, turn signal, reflector, license plate lamp, connector, ground, and wire can each be part of the same problem. When a light is cracked, waterlogged, dim, or simply not the right fit, the first decision is whether one component needs replacement or whether the trailer would be better served by a complete light kit.

A complete trailer light kit can make sense when both rear lamps are worn, the mounting housings are damaged, the license plate bracket needs attention, or a trailer build needs matched lights from the start. A single replacement lamp or pigtail can be the right answer when the rest of the lighting system is sound and the failed part can be matched by function, mounting style, and connection.

Before ordering, look at the trailer from the back and work forward. Note the shape of the lights, the mounting position, the connection style, the condition of the wire, and what functions the light needs to perform. A clear photo of the existing setup is often more useful than trying to identify a replacement from memory.

Choose the right scope

Complete kits and replacement parts solve different problems.

Complete trailer light kits

Start fresh with matched rear lighting.

A kit is a practical choice when the trailer needs more than one light or when the old setup has been pieced together over time. Matched lights help keep the left and right sides consistent, and a complete kit can include the major components needed for a cleaner replacement or a new build.

Check exactly what the kit includes before you buy. A lamp kit may include taillights, side lights, grommets, pigtails, mounting hardware, or a license plate bracket, but not every kit includes every connection or length of wire a particular trailer needs. Compare the product details with the trailer in front of you.

Individual lamps and connections

Match the part that needs attention.

A single lamp, plug-in pigtail, or grommet is often enough when the issue is isolated. The important part is matching the replacement to the existing system. A left-side lamp may not match a right-side lamp, and a hardwired light is not the same as one designed for a plug-in pigtail.

Look for the mounting style, lens shape, wire or connector arrangement, and the light functions used by the trailer. A replacement that physically mounts but does not match the connection or function can turn a simple repair into a wiring project.

Check before you order

Four details that keep the replacement on track.

Light function

Confirm what the existing light does. A rear lamp can combine stop, tail, and turn functions, while a separate lamp may handle backup lighting or side visibility. The replacement needs to support the same job in the trailer’s wiring system.

Mounting method

Compare whether the light is surface mounted, grommet mounted, stud mounted, or fitted into a housing. Measure the opening and look at the space around the mount. A light that is close in shape can still be wrong for the trailer.

Connection style

Look behind the old lamp before ordering. Some lights are hardwired, while others use a plug-in pigtail or connector. Check wire condition, terminal fit, and available slack so the replacement can connect without stretching or forcing the harness.

Left and right side

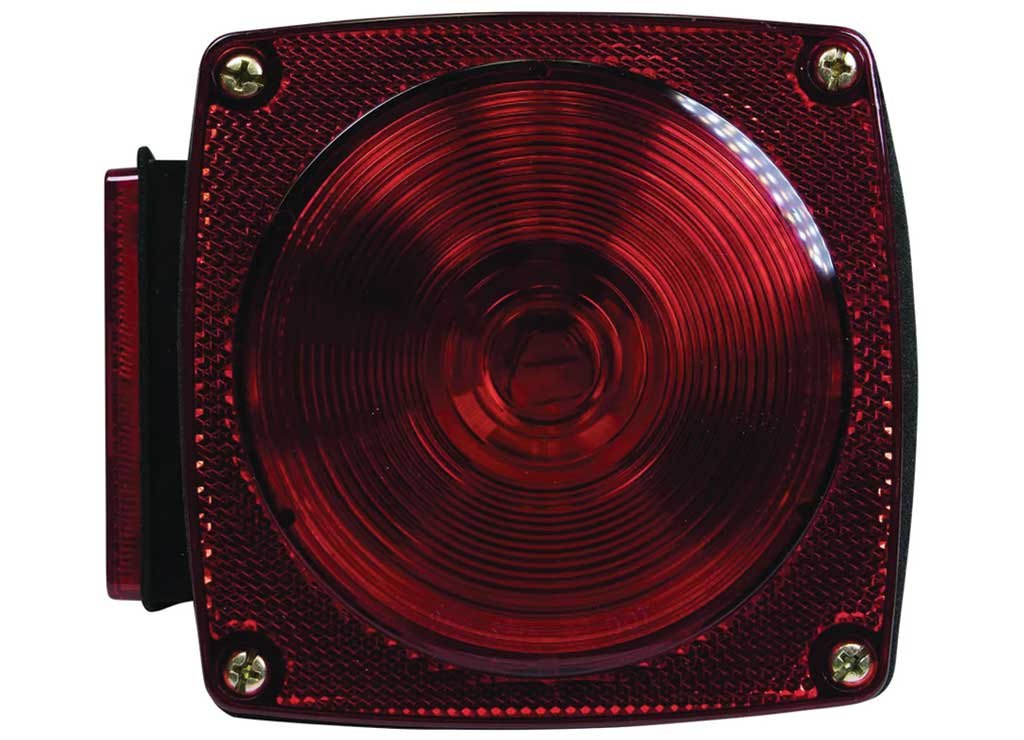

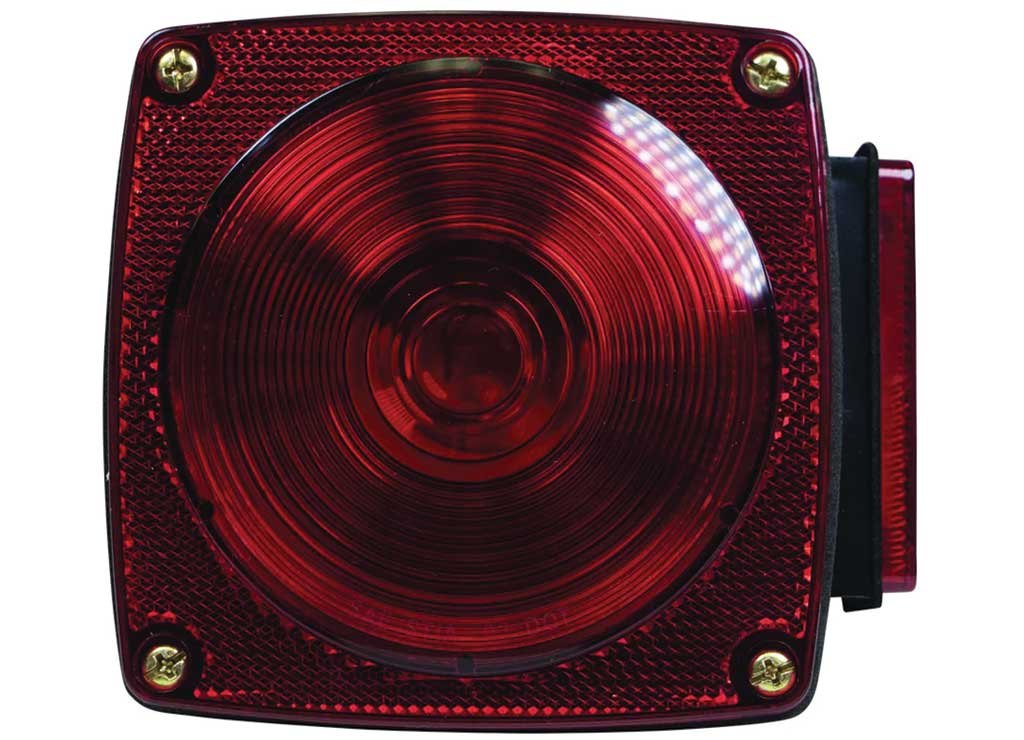

Taillight position matters. Many trailers use a left-side lamp with a license plate light or bracket and a different right-side lamp. Confirm the side and the visible features of the old lamp before selecting an individual replacement.

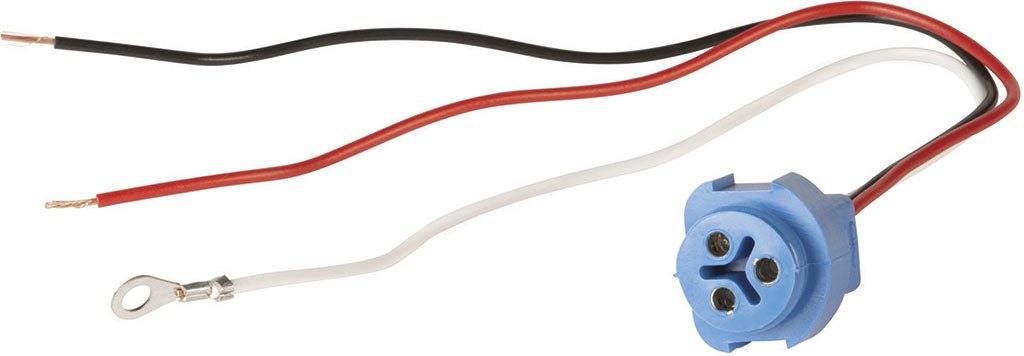

Three-wire plug-in pigtail for a trailer stop, tail, and turn light

Look past the lens

A new light only works as well as the connection behind it.

When a trailer light is not working, do not assume the lamp is the only cause. A loose ground, corroded terminal, damaged pigtail, pinched wire, or worn trailer plug can leave a good replacement light without the power it needs. Inspect the connection before replacing parts, especially if more than one function has stopped working.

Check the harness where it enters the lamp, along the trailer frame, and at the front connector. Look for crushed insulation, exposed conductors, rubbed-through spots, loose splices, and corrosion around terminals. Keep repairs protected from road spray and vibration, and use the product instructions for the correct wiring connection.

For a light that uses a plug-in pigtail, make sure the plug, seal, and wire routing match the existing setup. A pigtail is a small part, but it carries the stop, tail, and turn signals into the lamp. Matching it correctly helps keep a simple replacement from becoming an unreliable connection. Keep the old part nearby while comparing a replacement, especially when several similar light styles appear in the search results.

Browse Trailer Lighting and Connectors ›

Before the next trip

Finish the repair with a complete lighting check.

Test each function

With the trailer connected, check running lights, brake lights, left and right turns, hazards, and backup lights where equipped. A helper makes this faster, but reflections from a wall or garage door can help when you are working alone.

Confirm the ground

Lighting issues often come down to a poor ground. Check the trailer-side ground connection, the vehicle connector, and the metal contact points for looseness, corrosion, paint, or damage that can interrupt the circuit.

Secure the wiring

Keep wires away from sharp edges, moving suspension parts, hot surfaces, and areas where cargo can rub them. Make sure the harness has enough room for turns and trailer movement without hanging where it can snag.

Inspect the lenses

Before towing, make sure lenses are clean, unbroken, and visible from the rear and sides as intended. Replace cracked housings or lamps that hold water, even when they still light up, before the next trip exposes the problem again.

Shop Trailer Light Kits and Parts

View All Trailer Lighting ›

Northline’s current lighting selection includes a complete LED kit, matching replacement lamps, and the pigtail needed for compatible plug-in light connections. Compare the mounting and wiring details before adding a part to your cart.

Need help matching it?

Send a photo of the old light and the mounting area.

Have the trailer type, a photo of the existing lights, the mounting opening or housing, and any connector details ready. Northline can help you narrow down whether a full kit or a replacement part makes the most sense before you order.

Call 419-786-0636 Contact Northline

Frequently asked questions

Trailer light kit questions.

How do I know whether I need a complete trailer light kit?

Choose a complete kit when multiple lights, housings, wiring connections, or the license plate bracket need attention. If one lamp, connector, or pigtail is damaged and the rest of the system is in good condition, a matching replacement part may be the better choice.

Will a trailer light kit fit every trailer?

No. Check the mounting style, available space, light shape, wiring connection, and whether the kit includes the functions your trailer needs. A photo of the existing lights and mounting area helps confirm the replacement before ordering.

Can I replace only one trailer taillight?

Yes, when the matching side, mounting, connector, and light functions are confirmed. Check whether the replacement is a left or right lamp, whether it is hardwired or uses a plug-in pigtail, and whether it matches the existing mounting arrangement.

What should I check if new trailer lights still do not work?

Start with the trailer connector, ground connection, fuses, and the condition of the wiring between the tow vehicle and trailer. A new light cannot correct a loose ground, damaged plug, or broken wire elsewhere in the system.
