Trailer lights tend to fail at the worst possible time: when you are loading up after dark, getting ready for a weekend trip, or trying to leave the driveway. The good news is that most problems come down to a small number of places. A loose plug, a poor ground, a rubbed-through wire, a corroded splice, or a failed lamp can all create the same frustrating result.
Do not start by replacing every light on the trailer. Work through the system in order, from the tow vehicle to the trailer. That approach makes the problem smaller, keeps you from buying the wrong part, and gives you a much better chance of finding a repair that lasts.
Start with the pattern, not the part
Before unplugging anything, turn on each function and write down what works. Check running lights, left turn, right turn, brake lights, hazards, and reverse lights if your trailer uses them. The pattern matters because it points you toward the part of the system that needs attention.
- Nothing works: Begin at the tow vehicle fuse, connector, and main ground.
- One side is out: Look closely at that side's lamp, wire run, splice, and ground point.
- Running lights work but turn or brake lights do not: Check the separate signal circuit and the matching connector pin.
- Lights flicker over bumps: Suspect a loose plug, damaged wire, weak splice, or ground connection.
- One light glows when another function is on: A poor ground is a common reason circuits start borrowing a path through another lamp.
The federal lighting rule is detailed because trailers can use different lamp layouts and configurations. For the legal equipment requirements that apply to a particular trailer, start with Federal Motor Vehicle Safety Standard No. 108 and the trailer manufacturer's documentation. For troubleshooting, focus first on whether each light performs its intended job.
Check the tow vehicle before chasing the trailer
It is easy to assume the trailer is at fault because that is where the lights are. But the vehicle-side connector is the fastest place to rule out a bigger issue. With the trailer unplugged, turn on one function at a time and test the corresponding terminal at the vehicle socket with a circuit tester or multimeter. If the tow vehicle does not send power for the function you need, the trailer cannot correct it.
Look for a blown trailer-light fuse, a loose vehicle connector, water or road grit in the socket, and bent terminals. Some vehicles have separate fuses for left turn, right turn, running lamps, and trailer brake circuits. Your owner's manual should identify those circuits. A clean socket with firm terminal contact is the starting point for every reliable connection.
If the vehicle-side socket passes the test, plug the trailer back in and test again at the trailer end. This one comparison tells you whether the fault is before or after the plug. When a connector is cracked, loose, or badly corroded, replacing it can be more reliable than trying to make a tired connection work for one more trip.
Inspect the plug, pins, and ground connection
Disconnect the trailer and inspect both halves of the plug in good light. You are looking for green or white corrosion, dirt packed into the terminals, a pin pushed back into the housing, loose wire strain relief, cracked plastic, or a plug that no longer fits tightly. A connector can look fine from a few feet away and still lose contact when vibration starts.
Then check the ground. On many trailers, the white ground wire is attached to the frame near the tongue. That connection should be tight and attached to clean metal, not paint, rust, or a loose bolt. Follow the ground wire if you can. Older trailers and trailers that see water, salt, or regular road spray can develop more than one weak ground point.
A simple habit helps here: clean the contact surfaces, tighten the fastener, and protect the finished connection from future moisture. Do not assume wire color alone proves a circuit. Previous repairs, replacement harnesses, and custom wiring can change what you expect to see. Verify the function with a tester.
If the trailer needs a new trailer-side connector, compare the plug shape and the functions your trailer actually uses before ordering. Northline's trailer wiring collection includes replacement connectors and adapters for common setups. A seven-way plug, for example, can carry more functions than a basic four-way connection, so the right replacement depends on the trailer and tow vehicle.
Follow the failed circuit from the front to the rear
Once you know power leaves the tow vehicle and reaches the trailer plug, follow only the circuit that is failing. Do not unwrap every wire bundle at once. Start at the front of the trailer, then move rearward toward the lamp that is out. Check places where the harness is most likely to be stressed: the tongue, frame crossmembers, axle area, sharp metal edges, and any spot where a wire is held by a loose clip.
Look for pinched insulation, crushed wire, taped splices, dried-out heat shrink, and connectors hanging where they collect water. A wire can break inside the insulation, especially near a point that bends or vibrates. Gently moving the harness while the function is on can reveal a flicker, but keep clear of moving equipment and do not work under an unsupported trailer.
When you find a suspect splice, check it instead of guessing. A solid repair needs a clean conductor, a secure connection, and protection from moisture. If the wire is badly damaged across a long section, replacing that section can be more dependable than stacking repair after repair. For a trailer with a simple four-way harness, a replacement connector with color-coded leads can make a clean start easier than piecing together several old splices.
Test one light circuit at a time
A circuit tester or multimeter removes most of the guesswork. With the trailer connected and the needed function switched on, check for power at the light socket or lamp input. Then check the ground at that same lamp. If you have power and a sound ground but the lamp does not respond, the lamp itself becomes a much stronger suspect.
Use this order for a single failed light:
- Confirm the matching function works at the vehicle-side connector.
- Confirm it reaches the trailer-side plug.
- Check for power where the wire enters the lamp or socket.
- Check the lamp ground and mounting area.
- Replace the lamp only after the supply and ground checks point there.
This is especially useful when a light has more than one job. A tail lamp may be involved in running, brake, and turn functions, depending on the trailer's system. One working filament or LED function does not prove the entire lamp is good. Test each function separately rather than judging the lamp by whether it lights at all.
Be methodical around brake and signal circuits. If a tester shows no power at the lamp, move back to the nearest splice or connector. If it shows power but the lamp remains dark, inspect the socket, lamp body, and ground. Replacing a lamp before this check may solve nothing and leave the real break hidden farther forward.
Set up a safe, repeatable test
Good troubleshooting is easier when the trailer is parked on level ground, the tow vehicle is in park, and the trailer cannot roll. Chock the wheels before working around the tongue or underneath the frame. Keep the electrical test simple: one person operates the vehicle controls while the other watches the lamps and uses the tester. If you are working alone, use the hazard lights and running lights for the functions that can stay on without a helper.
Use a clean test point and make your connections deliberately. A test probe pressed against rust or paint can make a good circuit look bad. When checking a ground, use a known clean metal point on the frame or run a temporary lead to the battery ground so you can separate a ground problem from a power problem. Label the result of each test as you go. It is easier to keep moving forward when you know exactly where power stopped.
Do not short terminals together to see what happens, and do not keep a damaged wire energized while you search for a repair. If a fuse blows repeatedly, stop replacing fuses and find the short or damaged component first. A fuse is doing its job when it opens a circuit that needs attention. For a repair that involves unfamiliar brake wiring, battery charging, or a deeply damaged harness, a qualified trailer or automotive technician is the right next step.
Replace the part that failed, then protect the repair
Once you have isolated the problem, choose the repair that matches the failure. A loose or corroded plug calls for connector service or replacement. A damaged harness needs a protected wire repair or a new harness section. A lamp that has power and ground but will not light needs replacement. Northline carries trailer lighting parts along with wiring supplies, so you can match the repair to the issue instead of replacing unrelated pieces.

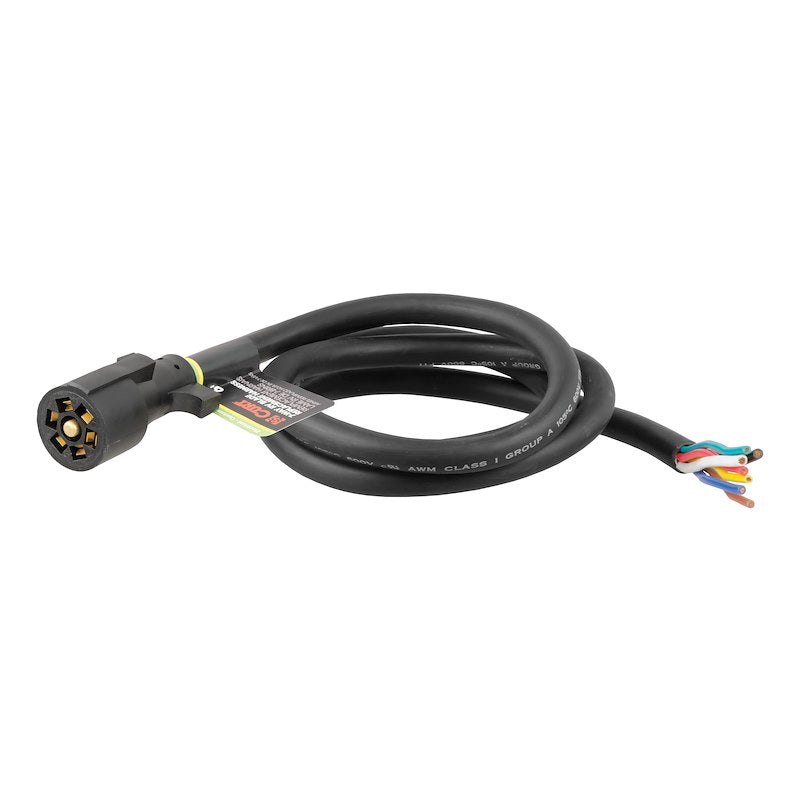

For example, a worn trailer-side plug can be replaced with a seven-way RV blade connector when the trailer uses that connection. A simple lighting harness can use a four-way flat connector. If testing points to a failed rear lamp, use a properly matched replacement such as a submersible stop and tail light for the correct side and mounting style.
Do a final light check before the trailer leaves
After the repair, test every lighting function again. Check with the trailer connected, then wiggle the plug gently and look for flickering. Walk around the trailer while someone else operates the vehicle controls, or use hazards and running lights when that makes the check easier. Make sure the harness is supported, clear of sharp edges, and not dragging near the road.
A quick walk-around before each trip is cheaper than discovering a light problem in traffic or at a launch ramp. It also helps you catch a connector that is starting to loosen before it turns into a full no-light situation. Keep the plug clean, cap it when it is not in use, and inspect the tongue area after long trips or rough roads.
Get the right part without guessing
Northline Trailer Group can help when you know the symptom but are not sure which connector, harness, or light fits your trailer. Send a photo of the existing part, the trailer's connector, and any markings you can find. You can browse all trailer parts online or contact Northline for help narrowing down the repair before you order.
If the wiring is heavily damaged, the trailer uses an unfamiliar setup, or you are not confident testing electrical circuits, stop there and get qualified help. A careful diagnosis is always better than turning a simple light issue into a larger wiring job.
Frequently asked questions
Why do my trailer lights work sometimes and then stop?
An intermittent trailer light problem is often a loose plug, a weak ground, corrosion inside a connector, or a wire that has rubbed through and makes contact only when the trailer moves. Start by checking the simple connections before replacing lights or rewiring the trailer.
Can a bad ground cause all trailer lights to fail?
Yes. A poor ground can interrupt several functions at once or make one light behave strangely when another function is turned on. Clean metal-to-metal contact at the trailer frame and connector is a sensible first check whenever several lights fail together.
Why do my running lights work but my turn signals do not?
That pattern usually points to a problem in the turn and brake circuit, not the running-light circuit. Check the vehicle-side connector first, then inspect the matching wire, splice, and lamp on the trailer side.
Should I replace the light or the wiring first?
Test before buying parts. If voltage reaches the lamp on the correct function and the ground is solid, the lamp may be the issue. If no power reaches the lamp, work backward through the wire, splice, and connector until you find the break.
