Repacking trailer wheel bearings is one of those maintenance jobs that is easy to postpone because the parts are hidden. That is exactly why it deserves a deliberate routine. Fresh, compatible grease helps the bearings turn smoothly, while a close inspection gives you a chance to catch a damaged race, leaking seal, or rough spindle before a loaded trailer is on the road.
This guide explains the general process for a conventional grease-packed hub. It is not a substitute for the service instructions for your axle, hub, brakes, or trailer. Those details matter, especially when the trailer has electric brakes, an E-Z Lube-style spindle, oil lubrication, or a bearing system that uses a different procedure. If anything does not match the trailer in front of you, stop and use the manufacturer’s instructions or get qualified help.
Know when a bearing service is due
Start with the maintenance schedule supplied for your axle and trailer. Dexter advises lubrication every 12 months or 12,000 miles for its applicable axles in its manual bearing-repacking guidance. Frequent towing, long storage, water exposure, or hard use can justify an earlier inspection. The interval is a planning tool, not a reason to ignore a warning sign.
Do not leave for a trip if you notice a hub that is much hotter than the others, grease around the inside of the wheel, grinding or rumbling, rough rotation, or obvious wheel play. Those clues do not identify the failed part on their own, but they are enough to park the trailer and inspect the wheel end. Northline’s trailer wheel-bearing buyer’s guide can help you identify parts once you have the hub apart.
Gather parts, tools, and the right trailer details
Before raising the trailer, have the axle and hub information available. A compatible bearing service may require grease, a new seal, cotter pin or retainer, clean rags, an appropriate solvent, a seal driver or suitable installer, hand tools, wheel chocks, and jack stands rated for the job. The exact parts vary, so do not assume that two bearings or seals that look alike will fit the same spindle.
Have a clean tray or separate marked areas for the inner and outer bearing parts. Keeping them organized matters when you are inspecting what came out of the hub. If you are replacing components, record the numbers stamped on the bearing and seal, take photos, and compare them with the trailer’s axle capacity and hub details. Northline’s axle and bearing collection is a useful place to compare real replacement components after you have confirmed those facts.
- Park on level, firm ground and keep the tow vehicle and trailer from rolling.
- Chock the wheels that remain on the ground before lifting anything.
- Loosen lug nuts only as the trailer manufacturer directs, then support the trailer with correctly rated stands.
- Never work beneath a trailer that is supported only by a jack, and do not use the axle tube as a lifting point unless the trailer maker specifically permits it.
Remove the hub without losing track of the parts
With the wheel removed and the trailer securely supported, remove the grease cap carefully. The retainer style depends on the axle. Some hubs use a cotter pin and castle nut, while others use a retainer. Follow the service information for the actual assembly rather than forcing a familiar-looking part. Once the retainer, nut, and washer are off, the outer bearing may be free, so support the hub as you slide it from the spindle.
The inner bearing is commonly held in the hub by the grease seal. Removing that seal lets you inspect and service the inner bearing, but it also means the seal normally needs replacement. Keep the hub on a clean work surface and do not let a bearing roll through grit. Dirt that reaches the rollers or race can undo an otherwise careful service.

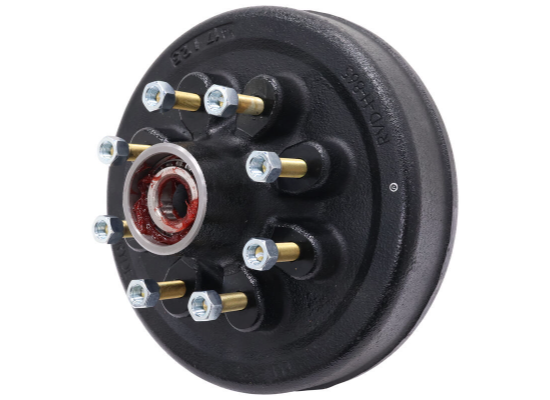

If the trailer has electric brakes, the hub or drum removal also exposes brake components. Use that access to look for anything obviously loose, worn, damaged, or contaminated. Do not turn a bearing service into a brake repair by guesswork. Northline’s trailer brake assembly guide explains what to confirm when braking parts themselves need attention.
Clean every part before deciding what can go back in
Remove the old grease from the bearings, hub cavity, races, washer, and spindle with an appropriate cleaning method. Work carefully and keep the cleaning material away from brake linings and other friction surfaces. Do not spin a dry bearing with compressed air. The point is to see the actual metal surfaces, not to rush through the messy part of the job.
Inspect the rollers and cage for pitting, corrosion, discoloration, rough spots, or damage. Then inspect the matching race, which is the smooth cup pressed into the hub. Dexter’s hub and bearing instructions say that if pitting, spalling, or corrosion is present, the bearing needs replacement, and that bearing cones and cups should be replaced as a matched set. That is a better rule than trying to save a damaged part with extra grease.
Also inspect the spindle where the bearing and seal ride. Deep scoring, blue heat marks, damaged threads, or an uncertain fit are stop signs. A new bearing kit cannot correct a damaged spindle. At that point, protect the trailer and get an experienced trailer professional involved before continuing.
Pack the bearings with compatible grease
Use the grease specified for the axle or hub, and do not casually mix grease types. Dexter warns that mixing different grease thickeners can cause harmful changes to the lubricant. If you do not know what is already in the hub, a thorough cleaning and one compatible grease choice is safer than adding an unknown product on top of the old material.
For a hand-packed tapered roller bearing, press the wide end of the bearing into a clean mound of grease, working around the bearing until fresh grease appears through the rollers. Dexter illustrates the same method in its hub, drum, and bearing instruction sheet. A bearing-packer tool can make this cleaner, but either method must fully work grease into the bearing rather than coating only the outside.

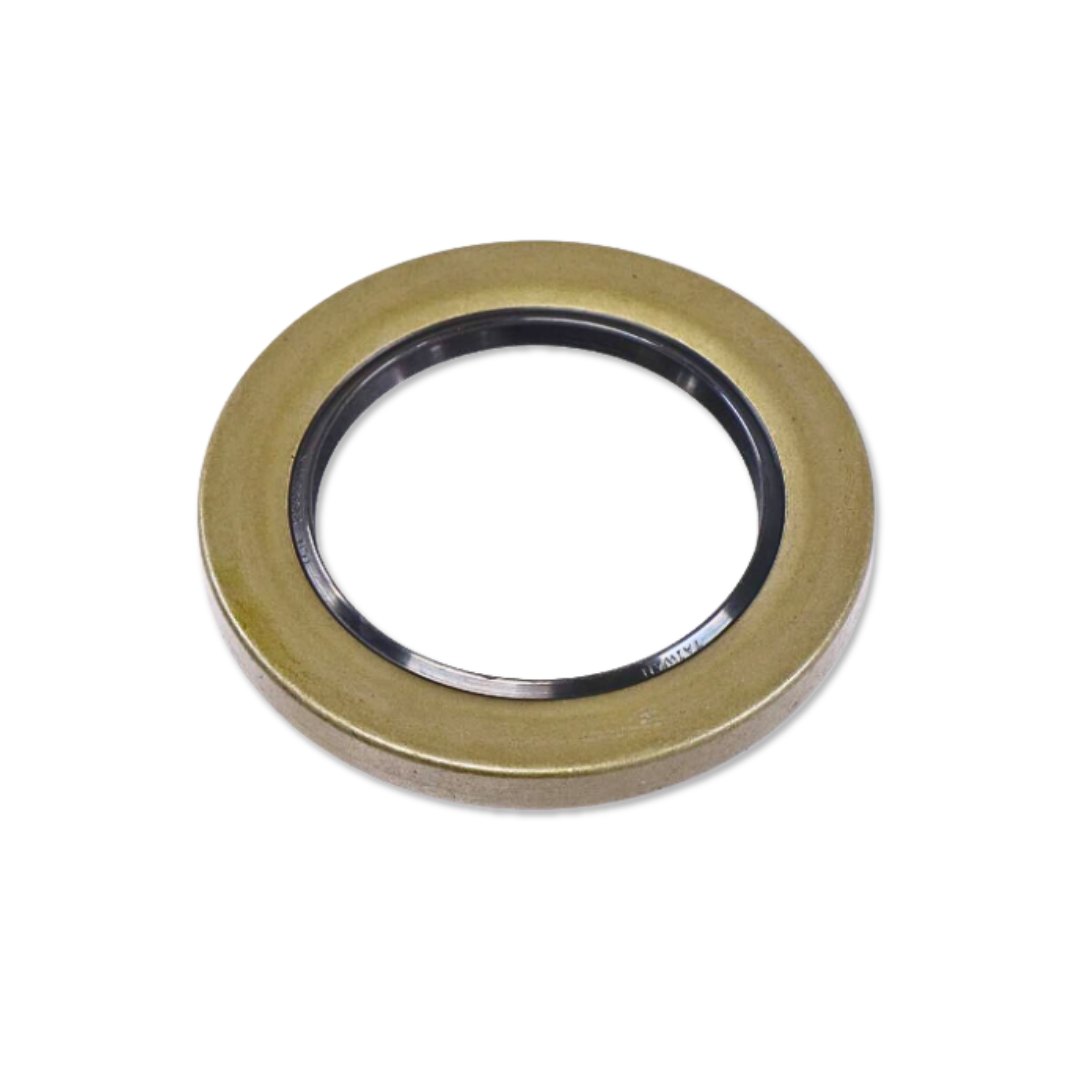

Apply grease where the manufacturer directs, install the inner bearing, and fit the new seal squarely without damaging its lip. The seal has a specific orientation, so check the part instructions before installation. A crooked or wrong-size seal can leak grease and let water or road grit enter the hub, which puts the fresh service back at risk.
Reinstall and adjust the hub exactly as specified
Slide the hub back onto the clean spindle carefully, then install the outer bearing, washer, and spindle nut or retainer in the correct order. Bearing adjustment is not a place for a universal torque guess. The correct sequence depends on the axle design. For example, Dexter’s instructions include rotating the hub while seating the bearings, removing the seating torque, then following the applicable final adjustment and retainer procedure.
Too much preload can create heat and shorten bearing life. Too much looseness can let the hub move where it should not. Use the exact procedure for the axle on the trailer, install the correct new retaining hardware where required, and make sure the hub rotates as the manufacturer expects before the wheel goes back on.
Reinstall the wheel with the correct hardware and torque specification from the trailer or wheel manufacturer. A bearing service and wheel installation are connected jobs, but they are not the same setting. If you cannot verify the wheel torque or the bearing adjustment procedure, this is the moment to pause, not improvise.
Finish with a careful check before towing
After the first short, cautious test, stop and compare the serviced hub with the others. Look for grease leakage, unusual heat, noise, or movement. Recheck wheel hardware at the interval specified by the trailer or wheel manufacturer. A quick walk-around before each tow also gives you a chance to catch a cap that is loose, a seal that is leaking, or a wheel that does not look right.
For a trailer that sees water, carries heavy loads, travels long distances, or has a history you do not know, give the wheel ends extra attention. The same applies after buying a used trailer. A documented, compatible bearing service is much better than assuming the hidden parts were maintained by the last owner.
Use the comparison between hubs, not a single absolute temperature, as your first practical check. One hub that is noticeably different from the others deserves attention. Do not touch a hub that may be dangerously hot, and do not continue towing just because a cap is still in place. A leaking seal, discolored grease, or a wheel that can be rocked at the top and bottom is enough reason to stop and find the cause.
It is also worth checking the tire and wheel while you are there. Uneven tire wear, a wheel that does not rotate smoothly, or hardware that will not stay secure can point to a separate problem that should be resolved before the next haul. Northline’s trailer tires and wheels buyer’s guide covers the fit and condition details to review when the wheel itself needs attention.
Get the right bearing parts before the job starts
Northline Trailer Group can help you narrow down a bearing kit, seal, hub, or related part when you have the old bearing number, axle capacity, hub details, and photos of what came off the trailer. The trailer bearing kit guide explains the fit details worth confirming before ordering, and the axles and bearings collection shows the parts Northline currently carries.
If the bearing, race, spindle, brake assembly, or adjustment procedure does not look right, do not force the repair just to get back on the road. Contact Northline with the trailer details or bring the old parts in for a more confident match.
Frequently asked questions
How often should trailer wheel bearings be repacked?
Follow the axle or trailer manufacturer’s schedule. Dexter recommends bearing lubrication every 12 months or 12,000 miles for its applicable axles, while frequent towing, water exposure, or warning signs can call for earlier inspection.
Do I need a new grease seal when repacking trailer bearings?
A grease seal is commonly replaced when the hub is removed because the old seal can be damaged during removal. Match the replacement to the hub and spindle rather than selecting by appearance.
Can I just add grease through an E-Z Lube fitting?
A fitting can be part of the manufacturer’s maintenance procedure, but it does not make every hub identical. Follow the axle maker’s instructions and inspect the wheel end when service is due, especially if there is heat, leakage, noise, or play.
What should I do if a bearing or race is pitted?
Stop and replace the matched bearing cone and cup, then inspect the hub and spindle before towing. Pitting, corrosion, spalling, or heat discoloration are signs that deserve a complete, compatible repair rather than fresh grease alone.
